Rabbit Laser Tool Tutorial

A laser cutter is used to mark, engrave, or cut a wide variety of materials. They work a lot like printers do, where you send a graphic to print. Instead of ink, the laser uses heat to transfer the image onto the material.

Class handout for basic laser operation: laser_101-basic_operation.pdf

Do not use prohibited materials in the laser (see Material Safety for allowed and prohibited materials)

Stay by the laser while it is running!

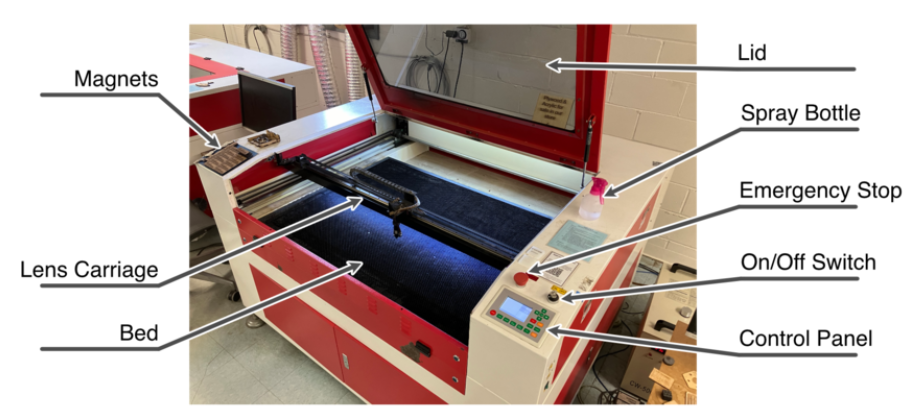

Tool Anatomy


  1. Lid - Absorbs the laser radiation and must be closed when running a job
  2. Lens Carriage - Houses the mirror, lens, and air assist
  3. Bed - 1200 x 900mm (~47” x 35”) Consists of a removable, magnetic honeycomb tray. Seated properly, it should feel stable & secure
  4. Emergency Stop - Reserved for emergencies. To deactivate and reset, you must twist the spring-loaded knob.
  5. On/Off Switch - Key switch turns the machine on and off
  6. Control Panel - LCD interface with commands to operate the laser
  7. Spray Bottle - filled with water; use to put out any smoldering fires / flare ups
  8. Magnets - use these to hold down your stock material

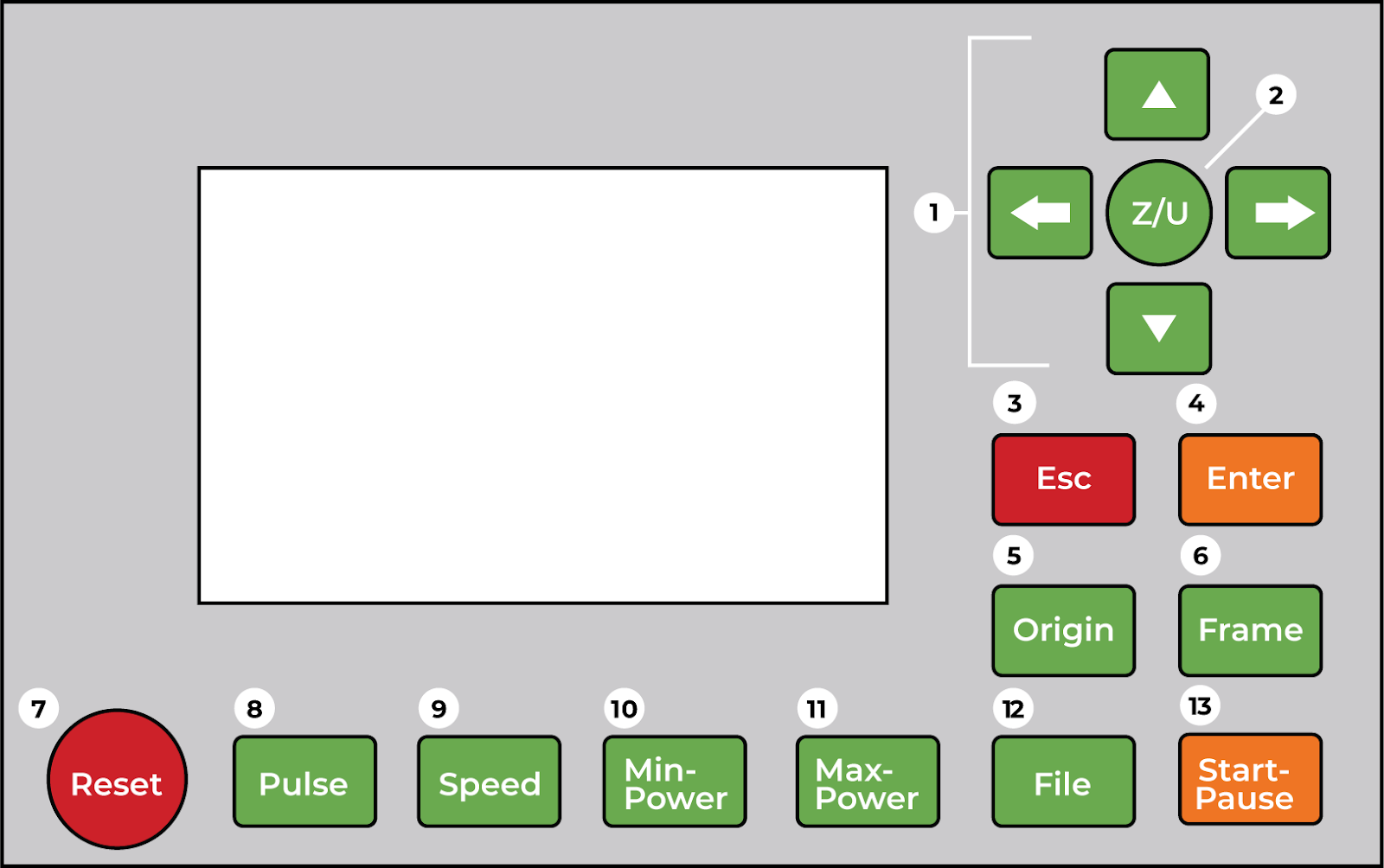

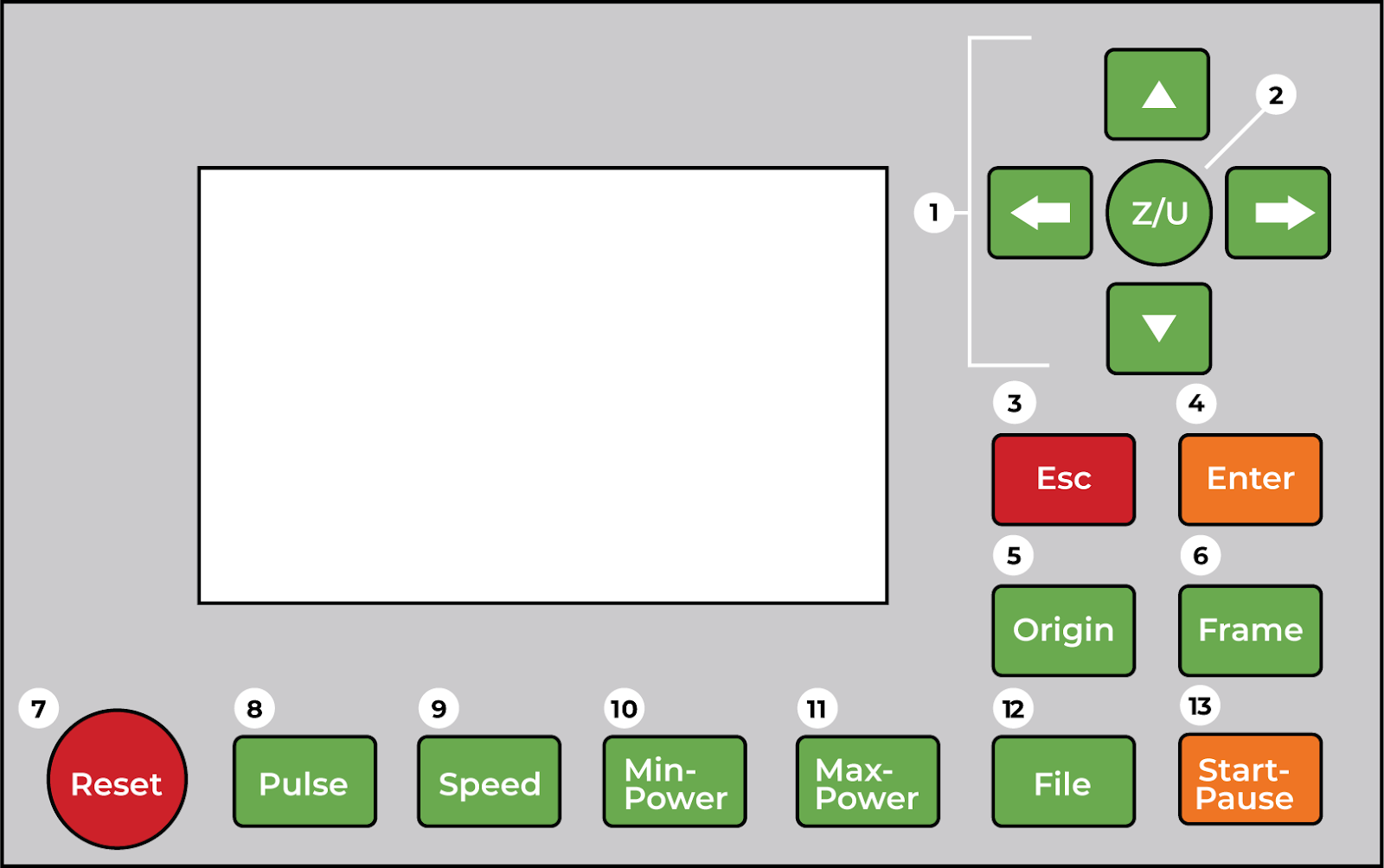

Control Panel


  1. Jog X-axis and Y-axis
  2. Adjust Z-Axis
  3. Exit Menu/Return to main screen
  4. Select menu item
  5. Set Job Origin
  6. Trace the footprint of a job to check its size and placement
  7. Reset machine, Abort Job
  8. Pulse the laser to mark its precise location
  9. Adjust speed (mm/sec)
  10. Adjust power (0-100%) for the areas the laser approaches a node/edge
  11. Adjust power (0-100%) for the areas where the laser is mid-cut/mid line
  12. Retrieve file sent to the machine (job queue)
  13. Start job, pause job, resume job

Safety

Do not leave the laser running unattended. Lasers can cause fires. If your workpiece catches fire and the fire is not handled promptly, the fire can get out of control, and create an extreme hazard. Always keep watch over your running job, and be ready to extinguish any small fires with the nearby spray bottle, and/or hit the emergency stop if the laser goes out of control.

Keep the laser door closed during normal operation. The door protects those nearby from any possible eye damage or skin burns should the laser hit any reflective material.

Make sure the fan is running before cutting or etching. Running the laser on certain materials can produce gasses and make the studio environment unpleasant: the fans will pull the gasses outside.

Common Hazards

Some materials may heat up enough from the laser to catch fire. In case of a small fire, use the water spray bottles to quickly douse any small flames.

Some materials may produce toxic gas when cut or etched. Make sure the material you are cutting or etching is not listed in the Prohibited Materials subsection.

Depending on the material, laser cutting may produce sharp edges. Always handle materials carefully after they have been cut.

Care

Use care when opening and closing the cover; do not let the cover slam closed. The shock of letting the cover fall freely onto the chassis has damaged the laser tube in the past; members will be held liable if a slid slam causes the tube to break.

Prohibited Materials

See Material Safety for allowed and prohibited materials.

Basic Operation

Set Up the Laser

  1. Turn on the large format laser.
  2. Make sure chiller is powered on and working. Look for the green status light on the front of the chiller.
  3. Make sure the exhaust fan is running.
  4. Carefully open the lid. The lid is heavy; letting the lid slam closed will damage the laser.
  5. Secure the workpiece to the grid. Use the provided mounting magnets to hold the workpiece in place.
  6. Position the laser head over the workpiece. Use the directional buttons to move the laser head across the bed.

Workholding

Use magnets to secure the workpiece to the grid.

Make sure that the laser’s path won’t cause the laser to cut the magnets, or for the laser head to crash into the magnets.

Focus the Lens

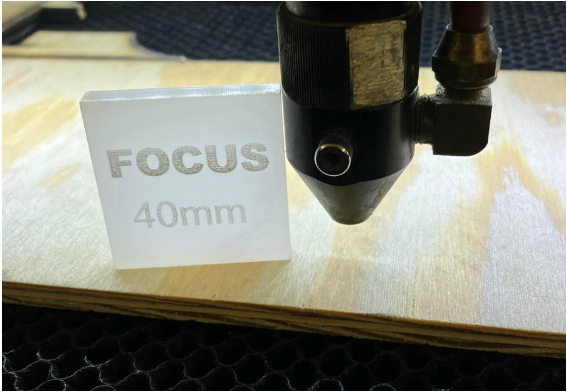

Use a focus block on the workpiece to set the height of the lens and bring it into focus.

  1. Press the Z/U button to change to bed height control.
    The screen will display a menu with Z move highlighted in blue.
  2. Press the ← (right arrow) and → (left arrow) buttons to align the focus gauge to the second ring of the lens carriage.
    The right arrow lowers the bed, and the left arrow raises the bed.
  3. Press the Esc button to return to the main screen.


Set the Origin

  1. Position the laser head over the workpiece at the location you want to set as a boundary for your art.
    Use the directional buttons to move the laser head across the bed.
    Optional: Press the Pulse button to verify the exact location.
  2. Press the Origin button to set the origin point for the job.

Set up the Job in LightBurn

These steps detail loading a single vector art file into LightBurn, and using that file to run a job with the laser. LightBurn is capable of much more: with LightBurn, we can load, manipulate, and compose multiple images into one job. For more about LightBurn, please
see the Software section further down.

Import the Art
  1. Open LightBurn on the computer connected to the large format laser.
  2. Click File > Import.
  3. Select the art file to import.

The art will be automatically placed on the LightBurn canvas. You may need to zoom and/or pan the view to see all of the art.

(Optional) Manipulate the Art

LightBurn is a capable image editor, and has many features that a specific to preparing artwork for the laser.

Work that is commonly done in LightBurn prior to cutting or etching:

  • Duplicating the art to cut multiple copies.
  • Putting portions of the art into layers, for different cuts and/or ordering the cuts.
Set the Reference Origin

Set the reference origin in LightBurn with the Job Origin tool:


Set the Speed and Power

In the Cuts/Layers panel, each layer will have a listed speed and power in the Spd/Pwr column. These settings must be adjusted for the material (wood, acrylic, natural leather) and purpose (cutting or etching). To adjust the speed and power settings:

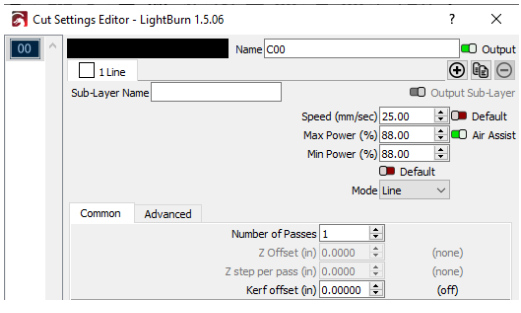

  1. Click on the value in this column to bring up the Cut Settings Editor dialog box.



  2. Use this dialog box to adjust the Speed and Max Power settings for the cut.
  3. Click OK

See Materials for good starting speed and power values for both cutting and engraving.

Run the Job on the Laser

  1. Check the footprint of your job.
    In LightBurn, press the Rectangular Frame button to command the laser to trace out the
    box boundary of the job, or the Circular Frame button to trace out the exact boundary of
    the job. The laser will trace out the area of the job. Make sure that the traced path does
    not leave the media, or run over any of the hold-down magnets.
  2. Press the start button.
  3. Monitor the machine until the job is complete.
    While the job is running, remain nearby the laser to make sure nothing goes wrong.

Cleaning Up

  1. Power off the Laser.
  2. Reset any modified computer settings to default.
  3. Vacuum the interior so material does not build up beneath the honeycomb.
  4. Recycle waste in the single-stream scrap bins.

Report any maintenance needs or concerns at protohaven.org/maintenance, or by
alerting a shop tech on duty.

If the single-stream scrap bins become full, alert a shop tech

Scrap Breakdown

There is a black scrap bin reserved for laser waste. Maintaining this is a shared, communal responsibility.

When you notice the scrap bin is full, it’s time to take it to the dumpster out back. Feel free to enlist a helping hand.

If you notice valuable material while emptying the bin, use your judgement to selectively save a few pieces or take it home for your personal use.

Troubleshooting

Problem Likely Cause Potential Solution
Cut does not go through the material The speed is too fast or the power is too low Use a scrap piece of the same material to make a series of tests with incremental adjustments until you find the sweet spot
The lens or mirror is fogged Alert the staff or volunteer on duty to the issue
Slop in the frame The origin in Lightburn is not set appropriately Adjust the origin point in Lightburn
The artwork is too large for the cutting bed: 1200 x 900mm (~47 x 35”) Adjust the overall artwork size
Burn marks on the back of the material Hot debris is scorching the edges of the cut lines Lay a sheet of paper beneath the material and the bed or line it with a laser-safe vinyl free tape
No visible cutting happening Lid safety switches not engaged, or software issue Confirm the lid safety switches click when the lid closes. Turning the machine off and on again may also help if that isn't the problem.

Notes

  • Register your material on the cutting bed using magnets or tape when doing a production run.
  • Use the front pass-through door for extra long pieces.
  • Use surface treatments like Cermark or paint to etch designs onto metal surfaces.

Software

Inkscape

Inkscape is software for creating and editing vector graphics: https://inkscape.org/

Inkscape is a valuable tool that’s useful in many parts of the shop.

A common use of Inkscape is to prepare art for import into the software that drives
various tools around the shop. Protohaven members use Inkscape to create and edit
designs for use with:

  • Large Format Laser (LightBurn)
  • CNC Embroidery (Artistic Designer)
  • Vinyl Cutter (Sure Cuts A-Lot)
  • CNC Router (Vcarve)

Inkscape can be used to prepare art for the Large Format Printer.

Inkscape is also a good general purpose tool for creating visuals: drawings, infographics, logos, title blocks, icons.

Download

Inkscape is freely available to download and use for Linux, Windows, and MacOS: https://inkscape.org/release/

Help and Tutorials

Manual

The Inkscape project maintains a comprehensive manual: https://inkscape-manuals.readthedocs.io/en/latest/index.html

The manual is updated regularly, and available for both online (HTML) and offline (PDF, ePub) reading.

Video

A short tutorial to get started with Inkscape:

A comprehensive tutorial series for Inkscape is available from TJ Free:
https://www.youtube.com/playlist?list=PLqazFFzUAPc5lOQwDoZ4Dw2YSXtO7lWNv

Some videos from the series that are good places to start:

LightBurn

LightBurn is layout, editing, and control software for the large format lasers: https://lightburnsoftware.com/

LightBurn is only available on the desktops dedicated for use with the lasers.

LightBurn is capable of handling all stages of a laser project, from art design through to running the job on the laser.

LightBurn can also import vector and raster art from other sources: you can work on your project in other software and then import it into LightBurn when you’re ready to run the job.

Help and Tutorials

LightBurn software has a YouTube page (https://www.youtube.com/@lightburnsoftware
7189/) with lots of content to help with projects. For those new to laser cutting and etching, these videos are a good place to start:

Concepts

Image Types

For computers to work with image data, the image data needs to be encoded in some way so that the computer can understand it. There are many approaches to encoding visual data, but most of them fall into two categories:

  • raster images, where the image is encoded as a grid of dots
  • vector images, where the image is encoded as a collection of objects

Raster Images

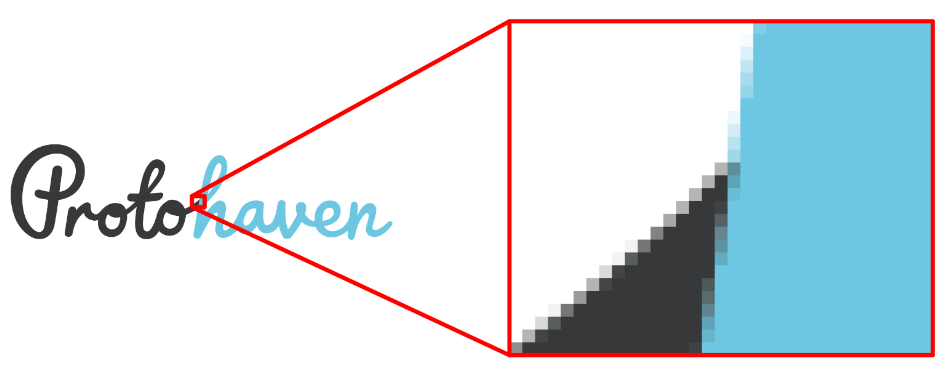

Raster images are composed of lots of dots: a rectangular grid of points, each point encoded with color information. If we zoom way in on a raster image, we’ll see that it’s made up of this grid of dots. In the following image, we can see from the zoomed in portion of the image that it’s made up of lots of tiny dots of color:


These dots are often referred to as pixels.

The number of pixels we have in an image partially determines its quality. The more dots in the image, the better the image will look (to a degree) and the more we’ll be able to adapt it for a variety of uses: we can, for example, scale up an image with lots of pixels and still have it look reasonable for most applications.

Raster images are useful for rich graphics: photographs, non-technical line art, etc. Raster images are particularly good for photographic material. Raster images are a poor choice for transmitting text (particularly if scaled), or vector art like line drawings, schematics, etc.

Common file formats like .jpeg, .gif, and .png are all image raster data.

Vector Images

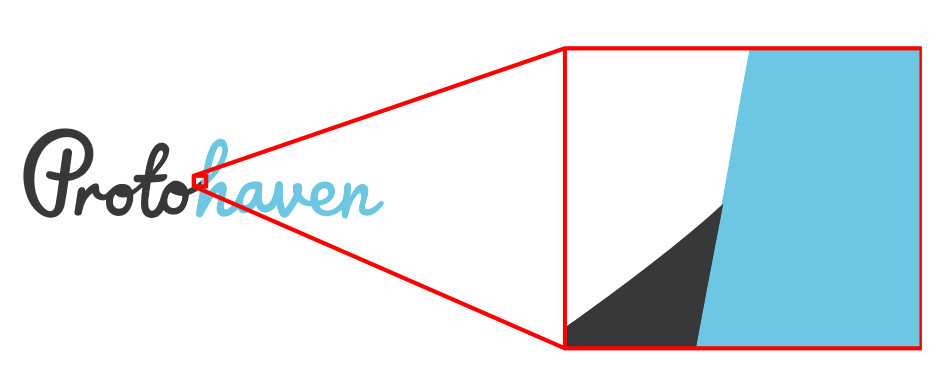

Vector images are built from logical instructions. In a raster image, a line might be encoded as a string of dots on the grid. In a vector image, a line is encoded as a logical connection between two points. A nice property of vector images is that they scale very well: they can be re-rendered with precision at any size. In the following image, we can see in the zoomed in portion of the image that there is no loss in precision or quality of the image:


Vector graphics are made of objects.

The objects in a vector graphics file logically describe the visual contents of the file. For example, the file my specify that at a particular coordinate on the canvas there is a square, filled in with a particular color. The information is not encoded in dots, like a raster image: the image contents are described instead by a collection of objects that describe an image.

Vector graphics are useful for any image that requires precision: vector formats are good choices for infographics, technical line drawings, schematics, and similar art. Vector graphics are also useful for any art that has a text component: labels, legends,
titles, etc. With a vector graphic, the text is also stored as vectors (the glyphs of the font, or objects derived from it), and the image can be scaled without any loss of quality for the text or the art.

Common file formats like .ai, .dxf, and .svg are all image vector data.

 Most vector file formats can also contain raster images, but raster formats cannot contain vectors.
